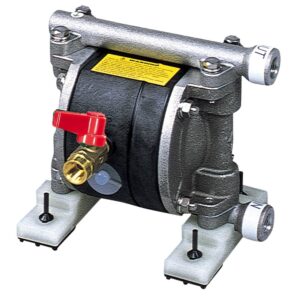

Yamada NDP-5 AOD Pumps
Yamada NDP-5 Series pumps are the backbone of the industrial line. A unique, patented air-valve design ensures stall-free operation throughout product life. Bolted construction and common component replaceable parts maximize uptime and increase profitability. Yamada also offers pumps according ATEX 114 explosion safety guidelines in this model.
Port Dimensions
Intake & discharge connection: 1/4″ 5 mm Female Rc
Air inlet (incl. ball valve): 1/4” 5 mm Female Rc
Air exhaust (internal silencer): 3/8″ 10 mm Female Rc
Air Supply Pressure (All Models)
1,4 – 7 Bar (0,14 – 0,7 MPa)
Discharge Volume Per Cycle:
29 cc
Maximum Cycles Per Minute:
400
Maximum Dry Suction Lift:
1,5 m
Air Motor Standard:
Ryton® air motor
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Manufacturer |
