Yamada NDP-15 AOD Pumps
Yamada NDP-15 Series pumps are the backbone of the industrial line. A unique, patented air-valve design ensures stall-free operation throughout product life. Bolted construction and common component replaceable parts maximize uptime and increase profitability. Yamada also offers pumps according ATEX 114 explosion safety guidelines in this model.
£375.30 – £1,007.10 ex VAT
Intake & discharge connection:
Polypropylene (PPG) 1/2″ 15 mm Female Rc

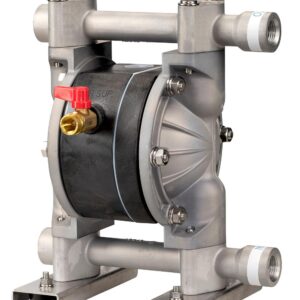

Aluminium (ADC-12) 1/2” 15 mm Female Rc

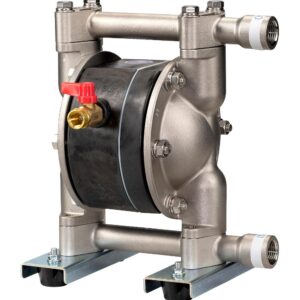

Stainless Steel (316) 1/2” 15 mm Female Rc
Air Inlet/Exhaust
Air inlet (incl. ball valve): 1/4″ 5 mm Female Rc
Air exhaust (internal silencer): 3/8″ 10 mm Female Rc
Air Supply Pressure
1,4 – 7 Bar (0,14 – 0,7 MPa)
Discharge Volume Per Cycle
NDP-15: 128 cc
Maximum Cycles Per Minute
All diaphragms: 400
Maximum Size Solid
1,0 mm (1/32″)
Maximum Dry Suction Lift
NDP-15: Flat-type check valve: 2,4 m
Ball-type check valve: 1,5 m
Air Motor
Standard: Ryton® air motor
Notes:
Santoprene®-fitted pumps include EPDM wetted o-rings.
Flat valves are standard PTFE.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
