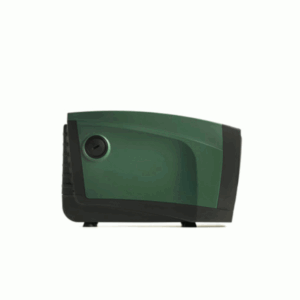

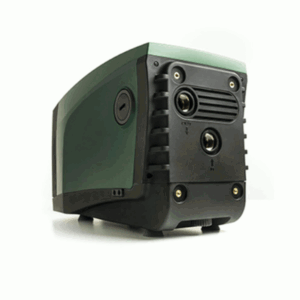

E.SYBOX comprises a self-priming, multi-stage pump with electronic inverter management, pressure and flow sensors, adjustable, high resolution LCD
display and an integrated 2 litre expansion tank. May be installed either vertically or horizontally, in closed spaces without high level of air exchange.
The accessories (e.sywall, e.sydock, e.sytwin, e.sytank) permit several installation possibilities.
The water-cooled motor, the protective and sound damping ABS hull, the anti-vibration feet and its electronics make this compact poroduct very quiet
(45dB under normal use). The wireless system enables the creation of other pressurisation groups able to connect with other DAB devices (eg, e.sylink).
£886.20 ex VAT
TECHNICAL DATA
Operating range: capacity up to 120 l/min; head up to 65 m.
Liquid quality requirements: clean, free from solid or abrasive contaminants,
non-viscous, non-aggressive, uncrystallised and chemically neutral.
Liquid temperature range: from 0°C to +35°C for domestic use for other use: from 0°C to +40°C
Maximum suction depth: 8 metres
Maximum ambient temperature: +40°C
Maximum operating pressure: 8 bar (800 kPa)
Motor protection rating: IPX4
Insulation class: F
Insulation class: Horizontal or vertical fixed position
Special executions on request: alternative voltages and/or frequencies.
Weight | 30 kg |
---|---|
Dimensions | 60 × 30 × 40 cm |
